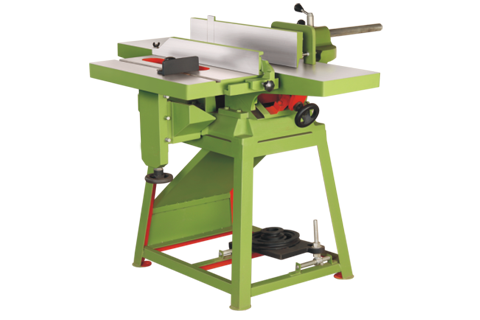

Surface Planer (Open Stand) |
|
| |
|
|
| |
| Surface
Planer Size |
10"
x 48" |
13"
x 51" |
13"
x 60 " |
13"
x 72 " |
| Surfacing
Capacity |
255
/ 10" |
330
/ 13" |
330
/ 13" |
330
/ 13" |
| Length
of Surface Table |
1220
/ 48" |
1295
/ 51" |
1525
/ 60 " |
1828
/ 72 " |
| Rebating
Capacity |
12.5
/ 1/2" |
12.5
/ 1/2" |
12.5
/ 1/2" |
12.5
/ 1/2" |
| Cutter
Block Speed (RPM) |
4000 |
4000 |
4000 |
4000 |
| Circular Saw Table Size |
24"
x 14" |
24"
x 14" |
24"
x 14" |
24"
x 14" |
| Up/Down
Movement of Cir. Saw Table |
75
/ 3" |
75
/ 3" |
75
/ 3" |
75
/ 3" |
| Max.
Circular Saw Diameter |
300
/ 12" |
300
/ 12" |
300
/ 12" |
300
/ 12" |
| Power
Required HP/RPM |
2
/ 1440 |
2
/ 1440 |
2
/ 1440 |
2
/ 1440 |
| Approx
Wt. of Machine |
220
Kg. |
250
Kg. |
300
Kg. |
350
Kg. |
|
|
| |
|
|
| |

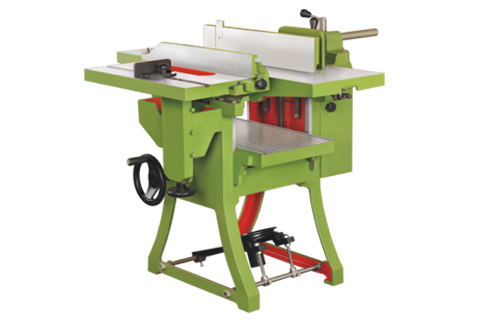

Combi Planer (Open Stand) |
|
| |
|
|
| |
| Comi-Planer
Size |
10" |
13" |
| Surfacing
Capacity |
254
/ 10" |
330
/ 13" |
| Max.
Planing Width |
254
/ 10" |
330
/ 13" |
| Thicknessing
Capacity |
177
/ 7" |
177
/ 7" |
| Length
of Surface Table |
1140
/ 45" |
1140
/ 45" |
| Rebating
Capacity |
12.5
/ 1/2" |
12.5
/ 1/2" |
| Length
of Thickness Table |
610
/ 24" |
610
/ 24" |
| Feeding
Speed (feet per minute) |
24 |
24 |
| Cutter
Block Speed (RPM) |
4000 |
4000 |
| Circular
Saw Table Size |
24"
x 14" |
24"
x 14" |
| Up/Down
Movement of Cir. Saw Table |
75
/ 3" |
75
/ 3" |
| Max.
Circular Saw Diameter |
300
/ 12" |
300
/ 12" |
| Power
Required HP/RPM |
2
/ 1440 |
2
/ 1440 |
| Approx
Wt. of Machine |
275
Kg. |
305
Kg. |
|
|
| |
|
|
| |

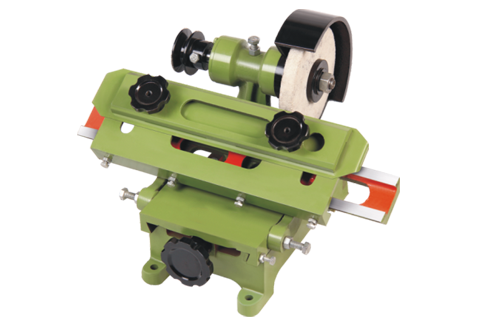

Blade Grinder |
|
| |
|
|
| |
| Max.
Grinding Capacity |
330
/ 13" |
| Grinding
Wheel Diameter |
150
/ 6" |
| Power
Requier - HP / RPM |
0.5
/ 1440 |
| Approx
wait of Machine |
25
Kg. |
|
|
| |
|
|
| |

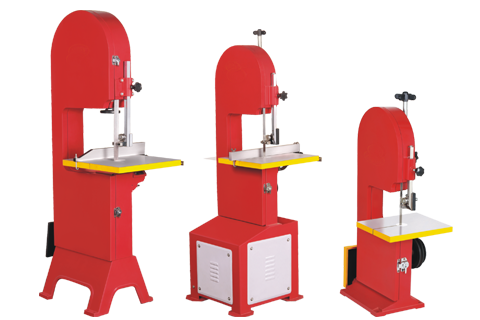

Band Saw Machine |
|
| |
|
|
| |
| SPECIFICATION |
18" |
12" |
9" |
| Dia.
of Saw wheel |
455
mm |
295
mm |
225
mm |
| Speed
of Saw wheel |
400 / 620 RPM |
850 / 1520 RPM
|
850 / 1520 RPM
|
| Table
Size |
508 x 508 mm |
295
x 340 mm |
225
x 300 mm |
| Power
Required |
2
HP / 1440 RPM |
1
HP / 1440 RPM |
0.5
HP / 1440 RPM |
| Cutting
Thickness |
150 mm |
100 mm |
50
mm |
| Approx
Weight |
340 Kg. |
115 Kg. |
55
Kg. |
|
|
| |
Main Body Frame is Made from Graded Cast Iron.
Flywheel are Dynamically Balanced.
Features :
Alluminium gap cover
Table with 45 tilt (Available in 12" & 18")
Upper saw blade guide systems
Dynamically balanced cast iron broad wheel |
|
| |
|
|
| |

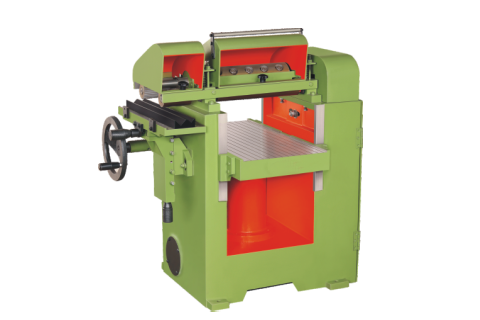

Thickness Planer |
|
| |
|
|
| |
| Meet MINI Max |
10" |
13" |
18" |
| Max. Planing width |
254 / 10" |
330 / 13" |
455
/ 13" |
| Thicknessing Capacity |
200 / 8" |
200 / 8" |
200 / 8" |
| Length of Thickness Table |
660 / 26" |
660 / 26" |
660 / 26" |
| Power
Required HP/RPM |
3
/ 1440 |
3
/ 1440 |
5
/ 1440 |
| Approx
Wt. of Machine |
330
Kg. |
350
Kg. |
420
Kg. |
|
|
| |
|
|
| |

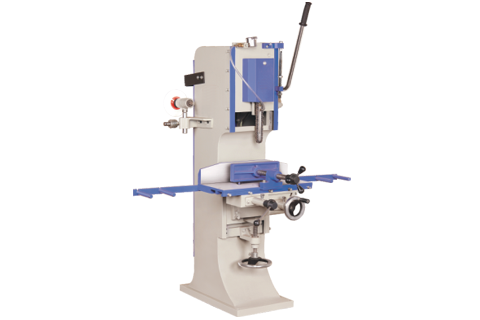

Chain Mortiser |
|
| |
|
|
| |
| Chain Mortiser Size |
mm / inch |
| Table Size |
560 x 228 / 22" x 9" |
| Up/Down
movement of Table |
75 / 3" |
| Cross movement of Table |
100 / 4" |
| Longitudinal movement of Talbe |
305 / 12" |
| Max. Depth of cut |
140 / 5 1/2" |
| Electic motor |
300
/ 12" |
| Power
Required HP/RPM - 1 Phase / 3 Phase |
2 HP / 1440 RPM |
| Weight |
242 Kg. |
|
|
