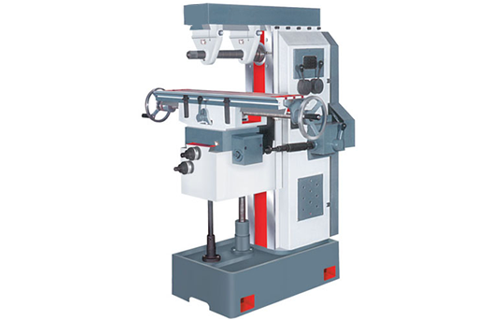

| SPECIFICATIONS |
| Working Surface mm |
1050 x 250 |
| Number of T-Slots |
3 |
| Width of T-Slots |
15 mm |
| Pitch of T-Slots |
62 mm |
| Maximum Distance from Spindle Centre to Underside of Over Support |
125 mm |
| MOVEMENTS |
| Longitudinal Movement of the Table by Lever / Screw |
600 mm |
| Cross Movement of the Table by Screw |
230 mm |
| Vertical Movement of the Table by Screw |
450 mm |
| MILLING SPINDLE |
| Spindle Bore |
17 mm |
| Inside Taper |
ISO - 40 |
| Arbor |
25.4 mm |
| REVOLUTION OF MILLING SPINDLE |
| Number of Spindle Speed |
6 |
| Range of Spindle Speed |
50, 85, 110, 240, 350,525 RPM |
| Number of Feeds |
3 Feeds
(0.9, 1.4, 2.25 Per Minute ) |
| ELECTRICAL |
| Main Drive Electric Motor |
2 HP, 1440 RPM, 440 V. 3 Phase |
| Coolant Motor |
0.11 KW, 2700 RPM |
| OTHER DIMENSIONS |
| Floor Space |
550 x 925 mm |
| Height |
1500 mm |
| Coolant Tank Capacity |
20 Ltr. |
